Scary Pumpkin Soldering Kit with Touch

v1.1

Designed by Electro707, Soldered by you!

GitHub Repository

Click on the icon bellow to be directed to this kit's source code (including the instruction's SVGs, KiCad files, etc.)

Instructions:

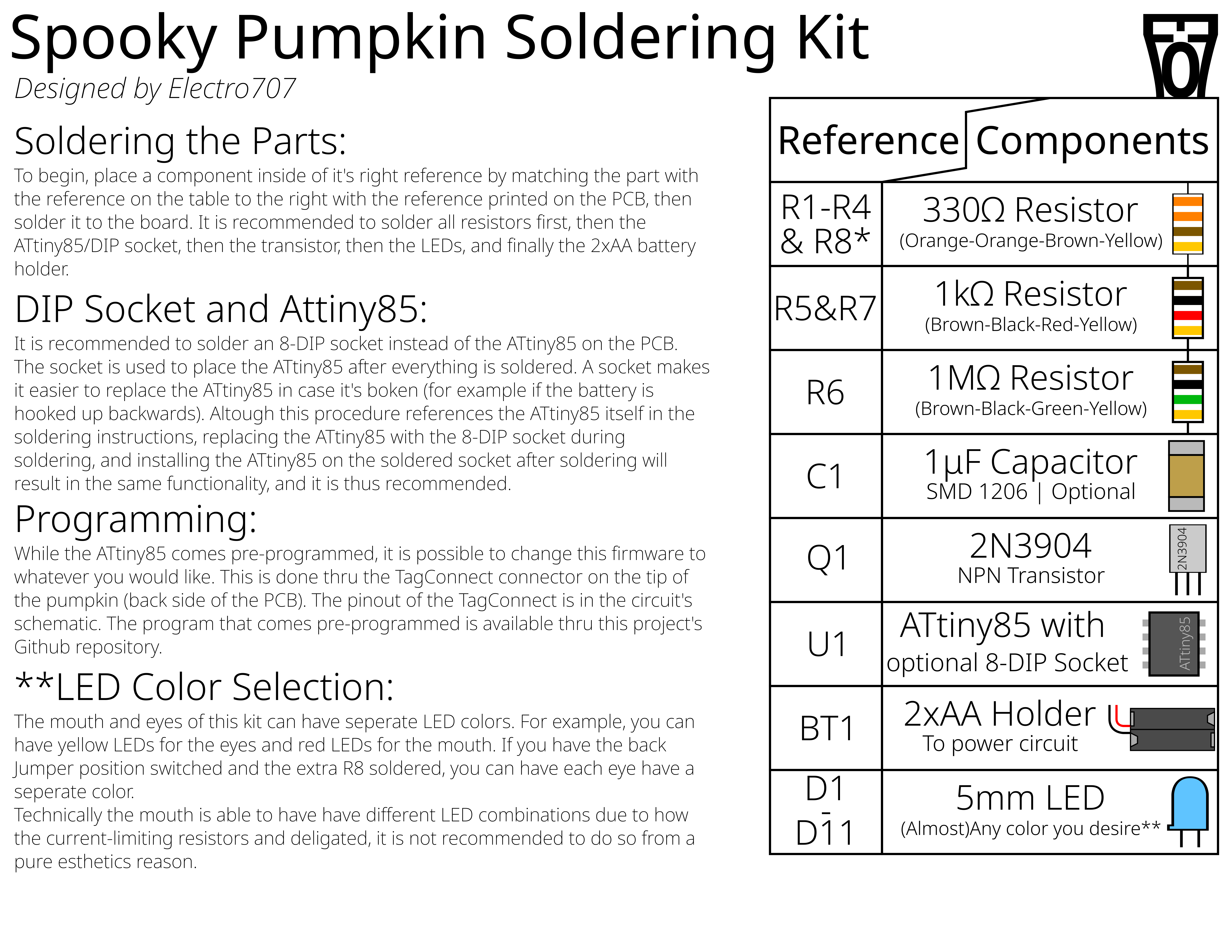

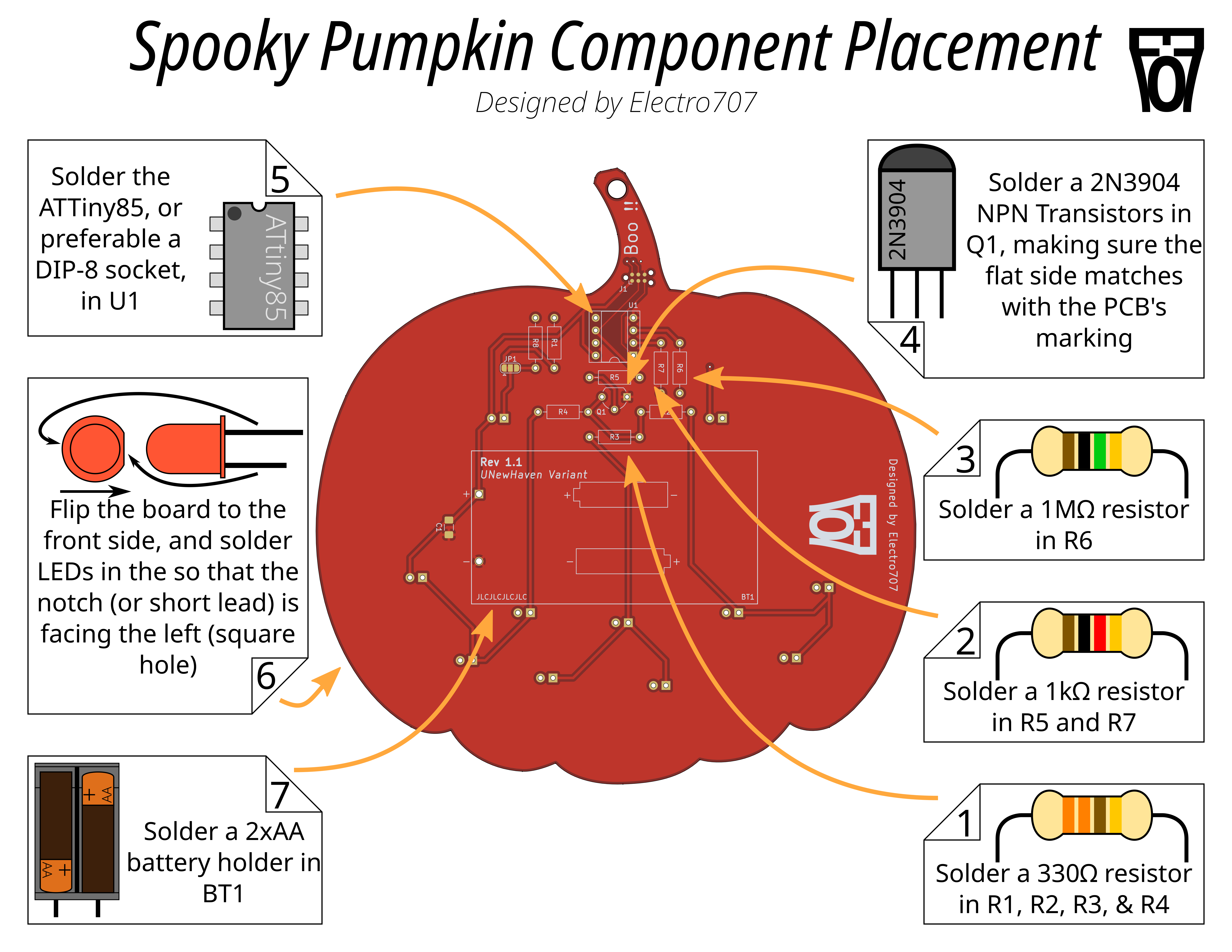

Here are the different soldering instructions (Click on one to open a high-res image in a new tab):
